Name: Toolless Roto
SKU: 747XXXX-XX
Availability: InStock

Toolless Roto

$300.32

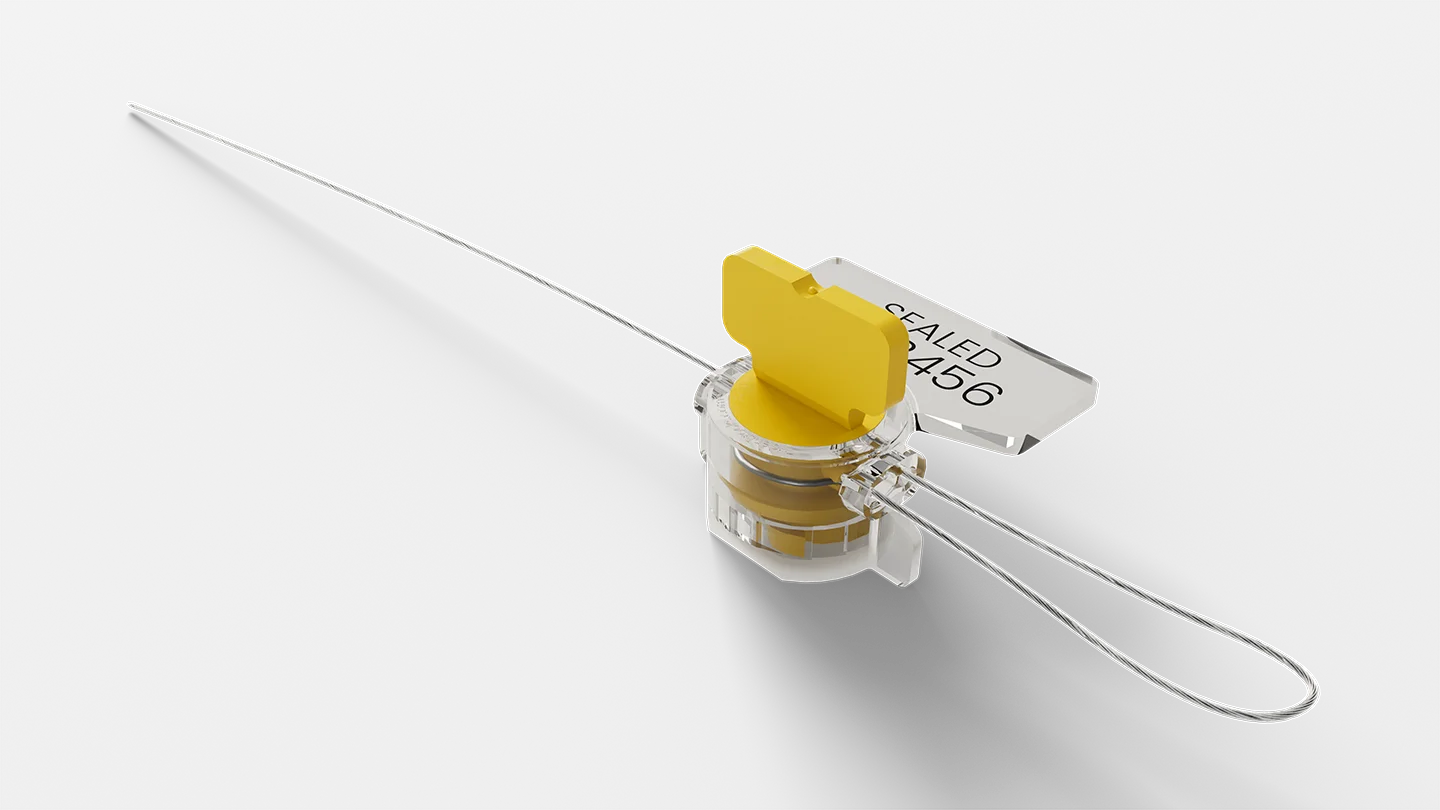

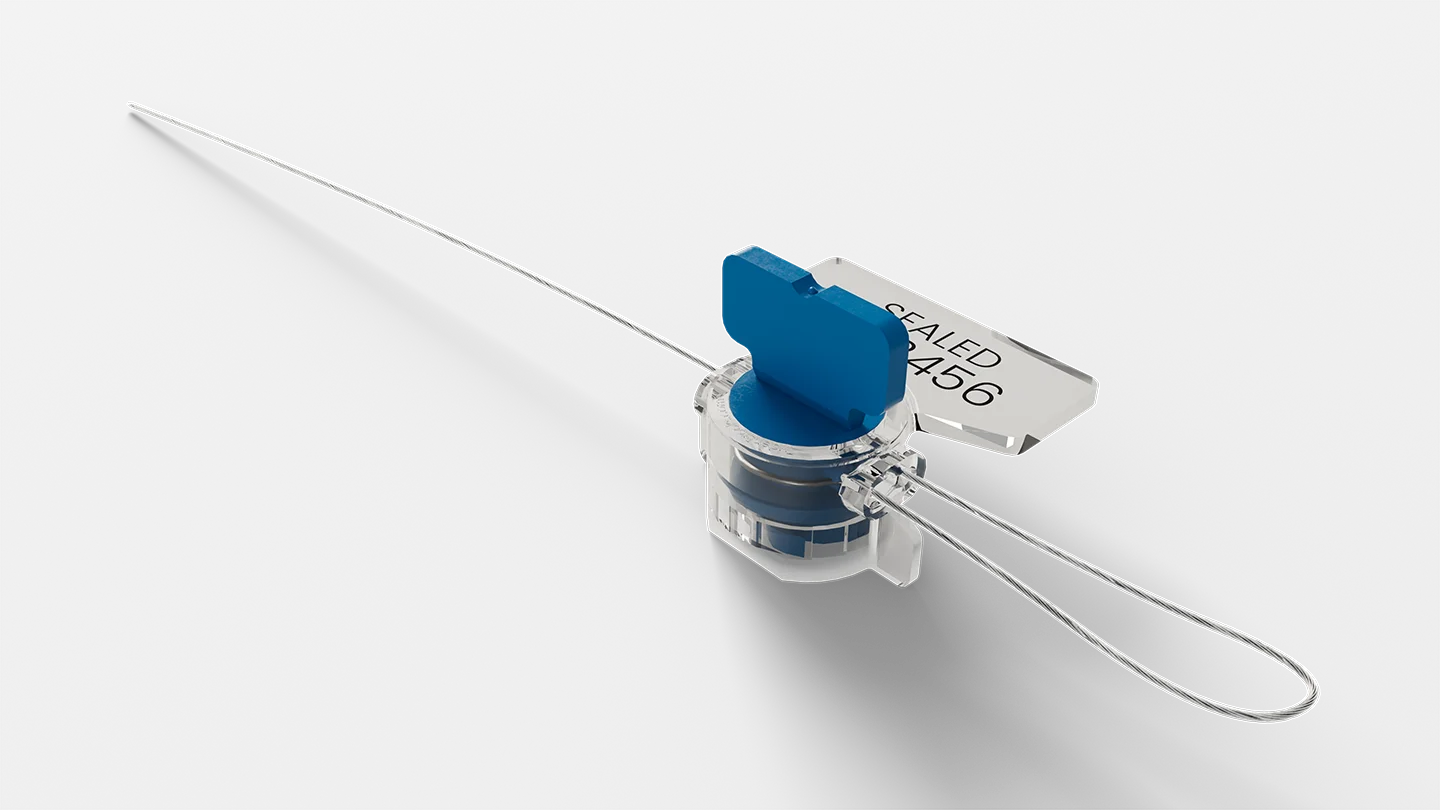

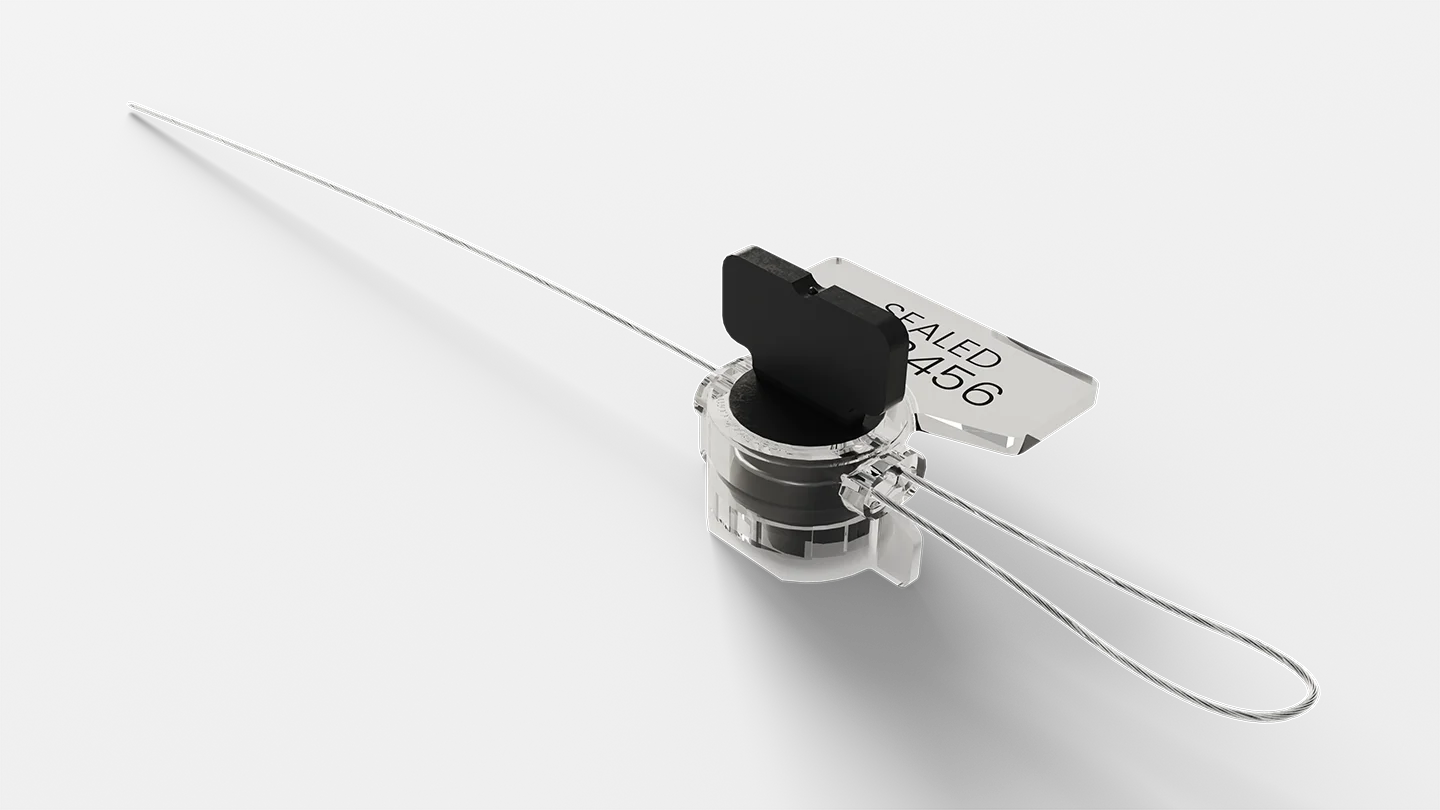

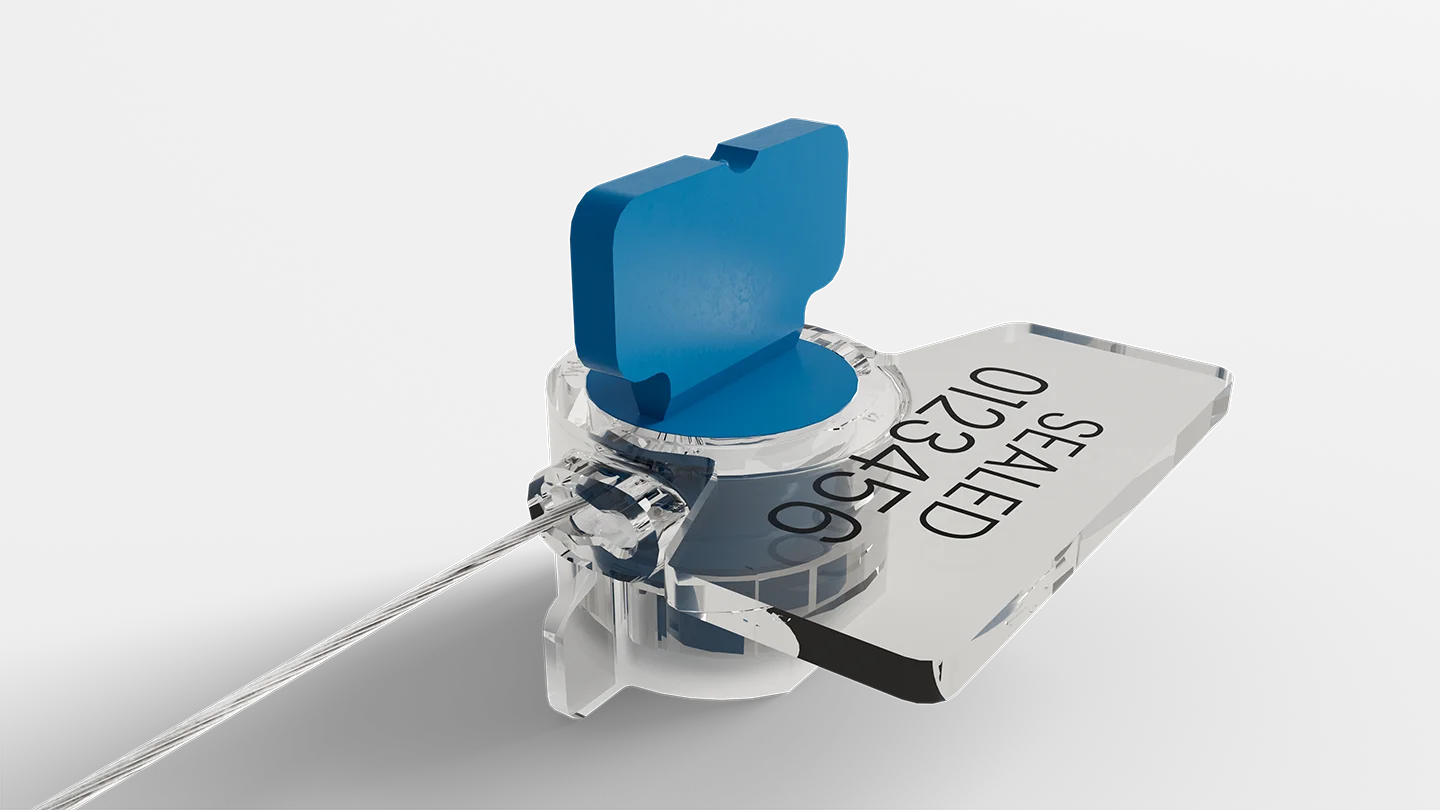

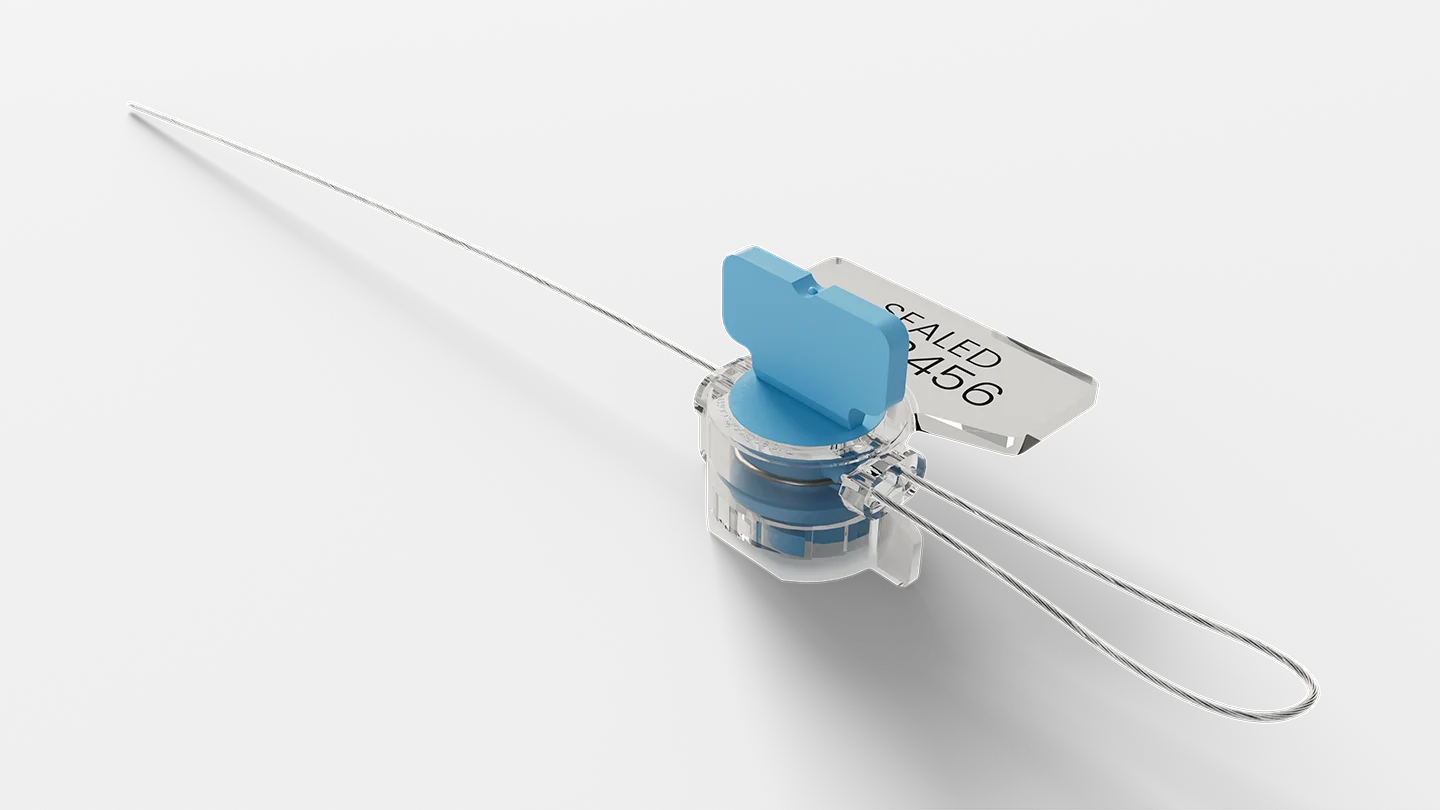

The Toolless Roto Seal is a durable plastic and wire seal that can be applied without a tool.

Toolless Roto

The Toolless Roto Seal is a patented durable plastic and wire seal that can be applied without a tool.

Industries

Automotive
Transportation
Chemical
Retail
3rd Party Logistics
Healthcare

Features

• Two component acrylic seal
• Wire rotates around insert
• Attached stainless steel wire up to 18” (304.8mm) long
• Spools or precut lengths of wire or Kevlar nonconductive wire also available
• Optional barcode is available

Applications

• Meters
• Fiber Drums
• Scales
• Gasoline Pumps
• Imported Carpets
• Totes

Material

• Body: Acrylic
• Hasp: Stainless Steel or Kevlar 1 x 7 x .009 soft stainless steel wire (.027 OD)

Dimensions

• Body: 1.06″ (27mm)
• Flag: 0.42″ (10.6mm)

Strength Characteristics

• 0000

Marking/Printing

Standard decoration:
• Heat stamped, consecutive number (7 digits) and company name/logo; last three digits of serial number laser etched on insert as an option

Special decoration:
• Laser etched bar code with human readable numbers (Flag is white and not clear if laser etched)

Barcode Parameters:
• Code 128 – 7 alphanumeric characters, Interleaved 2 of 5 – 8 numeric (must be even number of characters) or Code 39 – 5 alphanumeric characters

Standard Colors

• Body: Clear
• Insert: Red / Blue / Green / Yellow / Orange / Black

Packaging

Standard Packing:
• Without wire 100/bag, 1000/box, 5,000/master
• With 8-18″ attached wire 100/bag, 500/box, 2,500/master
• Kevlar wire 100/bag, 1000/box, 5,000/master

Weight:
• Without wire Gross: 34 lbs. (15 Kg)
• With 8″ attached wire Gross: 22 lbs. (10 Kg)

Carton (Master) Size:
• Without wire 28″ x 15″ x 9″ (70cm x 37.5cm x 23cm)
• With 8″ attached wire 28″ x 15″ x 9″ (70cm x 37.5cm x 23cm)

Box Size:
• With 8″ attached wire 14″ x 8.5″ x 4.75″ (35.5cm x 21.6cm x 12cm)

Box Weight:
• With 8″ attached wire 4.3 lbs. (1.95 Kg)
