Tyden Ball Seal

$290.88

The Tyden Ball Seal is the global standard for tamper-evident protection for over 100 years, featuring a durable, fixed-length metal design with a double-locking ring mechanism for secure closure and clear evidence of tampering

SKU: 6161XXX Category:
CLICK HERE TO DOWNLOAD RELATED DOCUMENTS

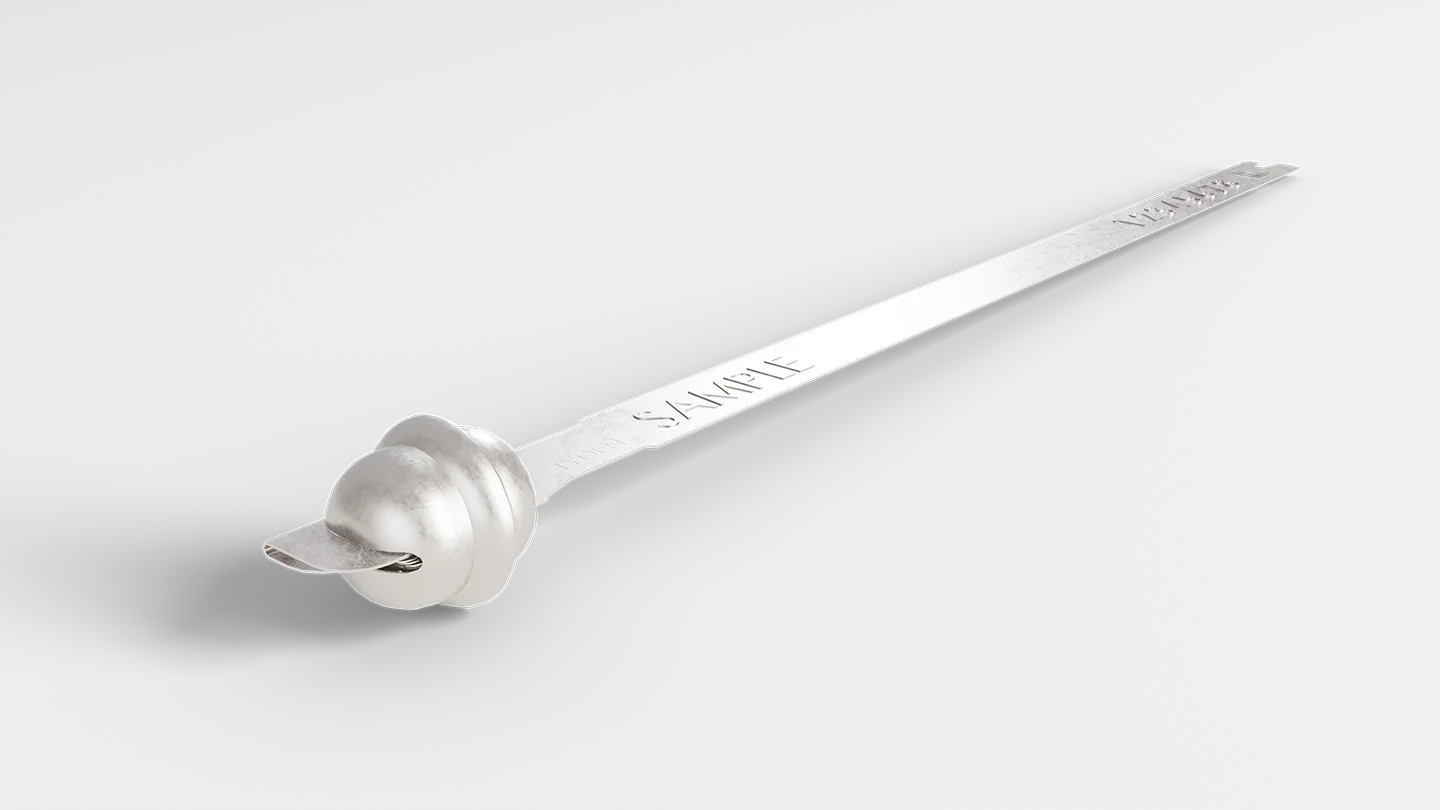

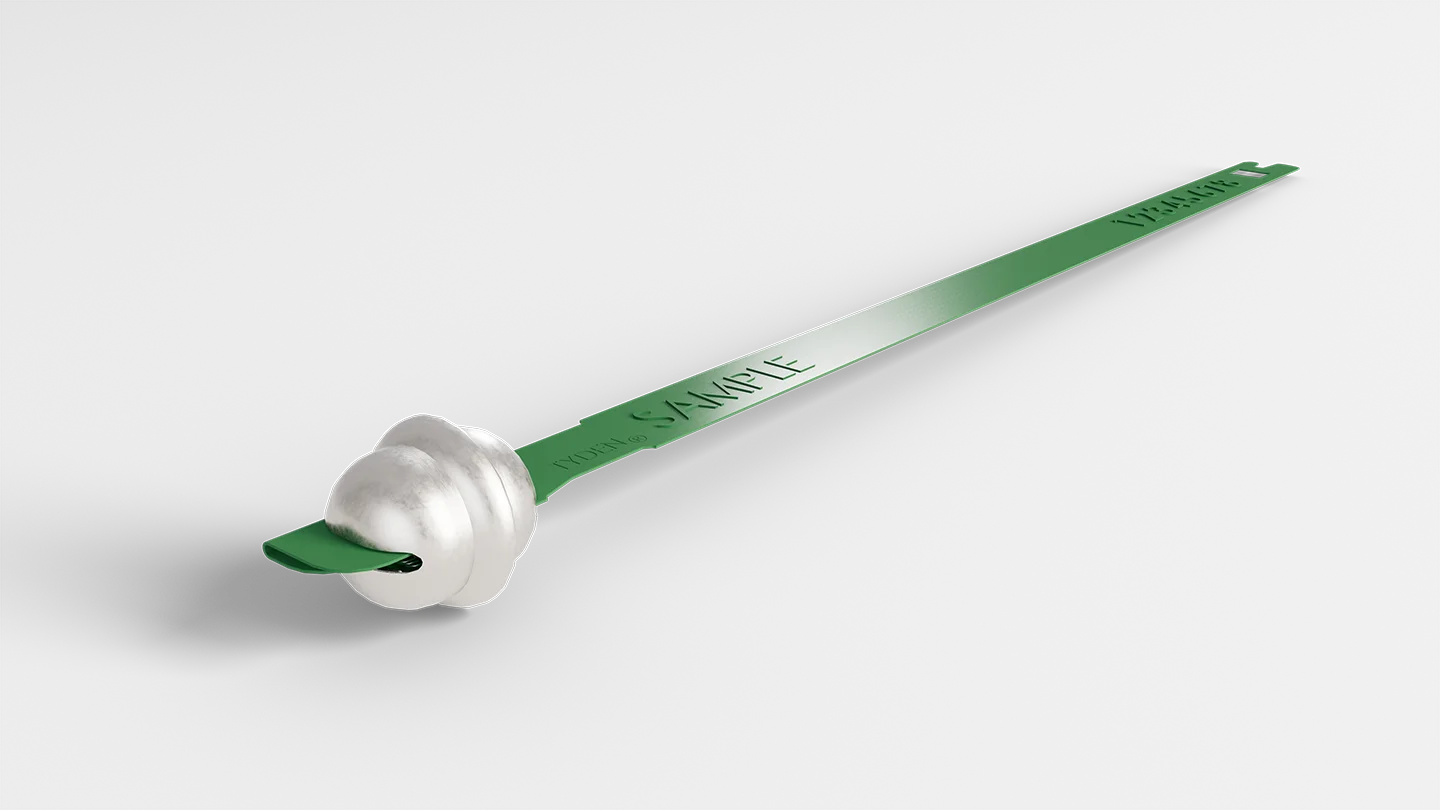

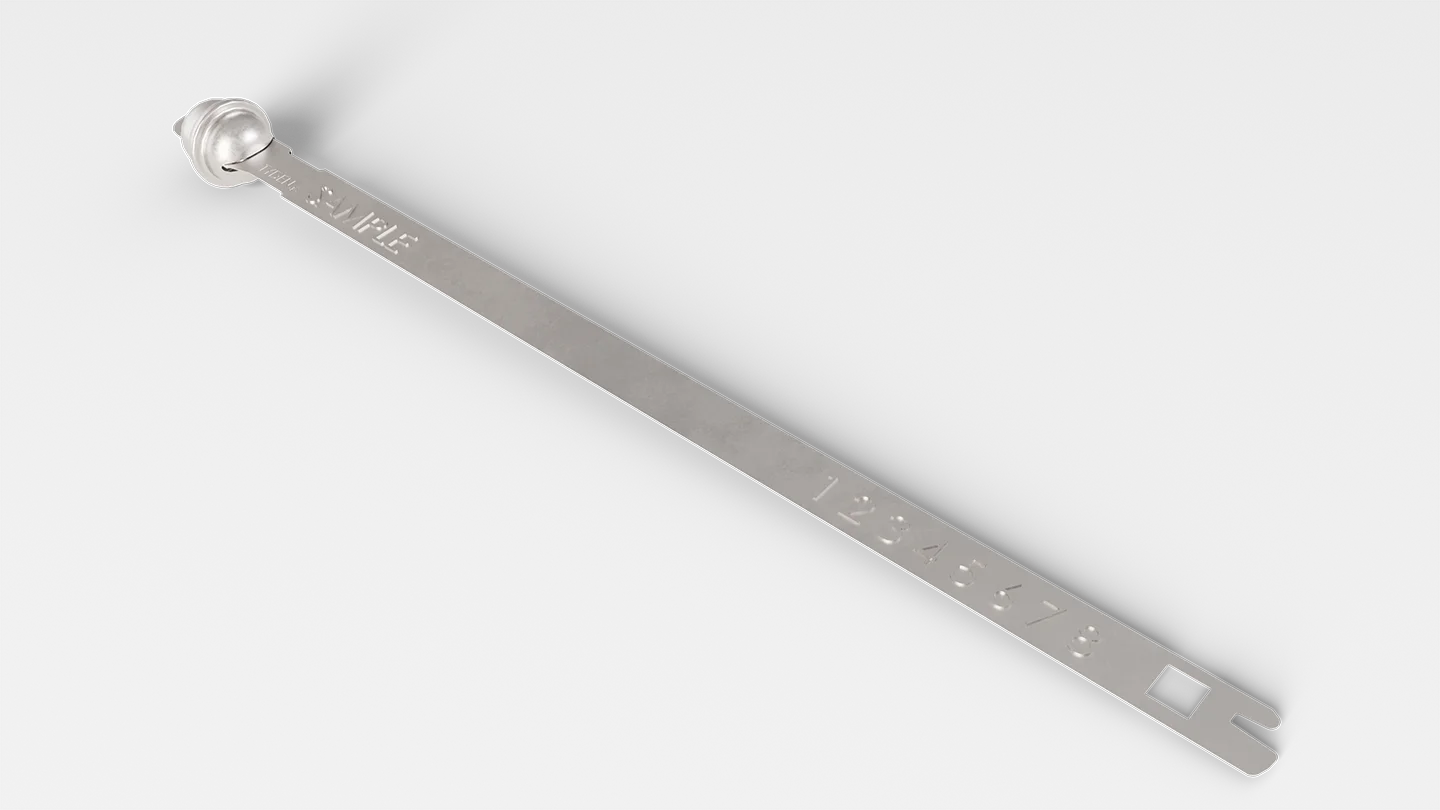

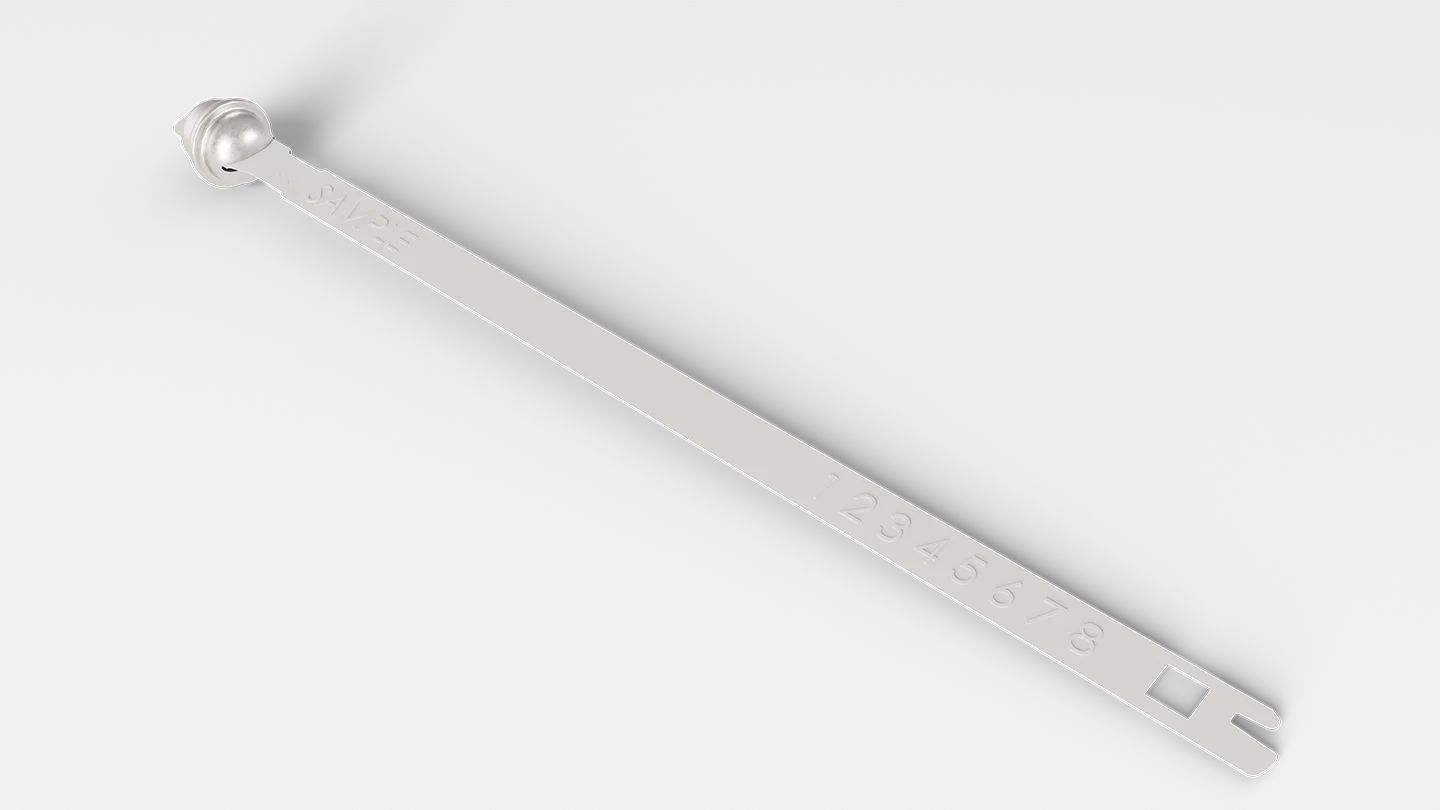

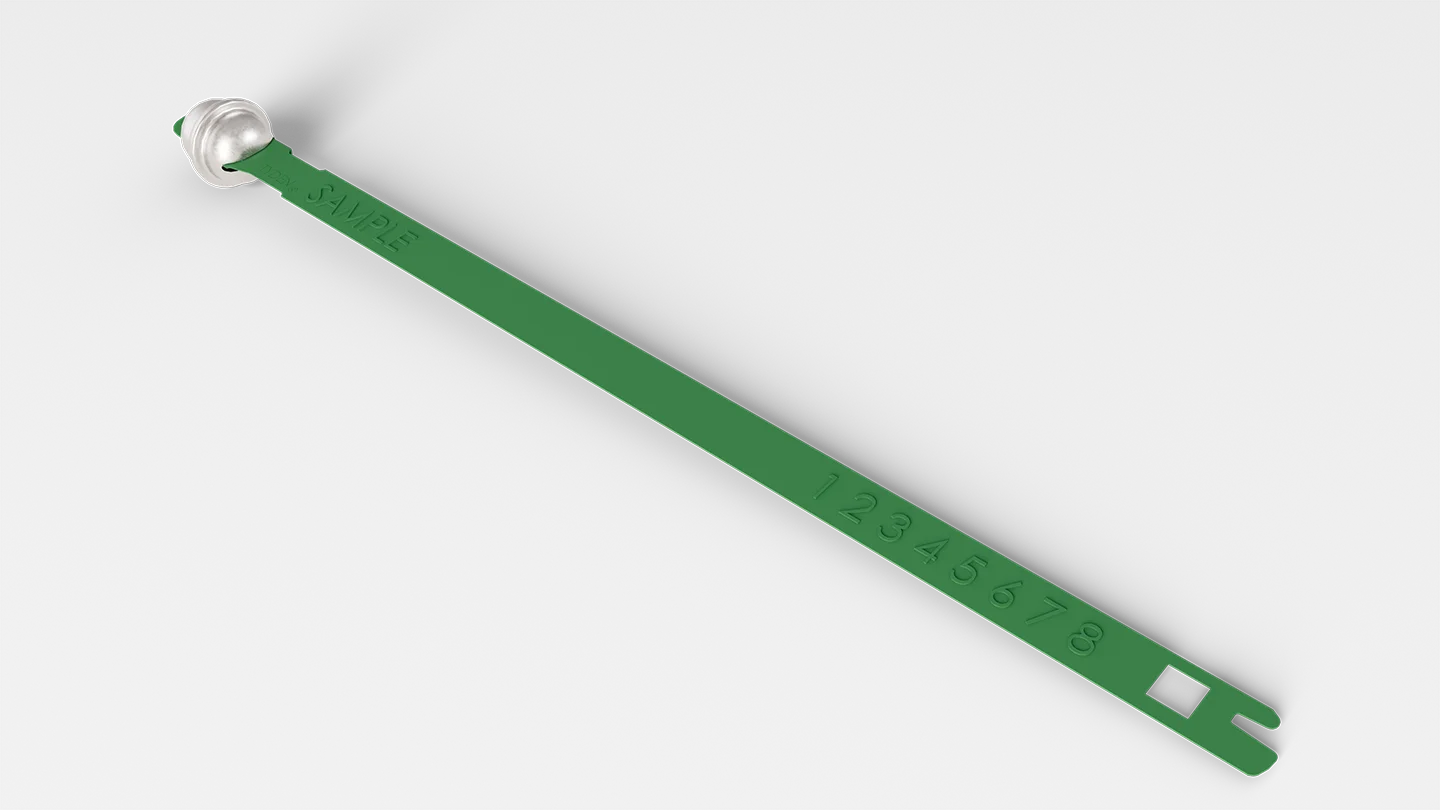

Tyden Ball Seal

The TydenBrooks Tyden Ball Seal is the global standard for tamper-evident fixed tin-plated metal security seals. It features a double-locking ring mechanism, ensuring 100% effective closure and providing clear evidence of tampering. Ideal for securing rail cars, trucks, containers, and other critical transportation assets, the Tyden Ball Seal also features optional safety rolled edges for enhanced handling comfort.

Industries

  • Rail

  • Trucking

  • Transportation

  • Agriculture

  • Food & Beverage

  • Healthcare

FeaturesFeatures

• A global standard offering superior tamper-indicative security for more than 100 years.
• Double locking ring design provides 100% effective closure
• Seal end is visible for inspection through sight viewing hole
• Removal impossible without leaving evidence of tampering
• Optional safety rolled edge for easy handling

ApplicationsApplications

• Rail Cars
• Containers
• Hopper Cars
• Tank Car
• Tanker Trucks
• Truck/Trailer Door

MaterialMaterial

• Tin Plated Steel

DimensionsDimensions

• Overall Length: 8.33″ (211mm)
• Useable Length: 6.98″ (177.2mm)
• Width: .31″ (7.9mm)

Strength CharacteristicsStrength Characteristics

• Tensile strength: 116 lbf. (0.52 kN)
• Removal: cut with tool (cable cutters model c-7 or tin cutters)

Marking/PrintingMarking/Printing

• Standard: Embossed cold stamped marking with two lines of up to 17 characters and 5-10 digits
• Optional: Ink Jet (barcoding available on white or yellow seals)

Standard ColorsStandard Colors

• Mill/Finish
• Custom Top Cap Colors: Red/Orange/Green
• Custom Strap Cap Colors: Red/Blue/Green/White/Yellow

PackagingPackaging

• Standard Packaging: 100/wire; 1,000 per box
• Carton Dimensions: 16” x 13” x 6” (40.6cm x 33.0cm x 15.2cm)
• Carton Weight: Gross: 15 lbs. (6.8 kg)

Superior Quality

Original innovator and manufacturer of tamper-evident security seals—Producing the highest quality of seals for over 150 years with cutting-edge manufacturing and consistent performance. Designed for durability, dependable performance, and compliance with global security standards to ensure reliability at scale.

Tailored Customization

Developed around customer needs, backed by TydenBrooks expertise, we offer tailored customization to meet your unique branding needs, ensuring solutions are specific to your specific security and brand requirements.

Dedicated Customer Service

Our dedicated and reliable customer service team is available to offer quick resolutions to ensure your security needs are always met and support every step of the way. Working alongside you to listen to your unique needs, ensuring that you receive the best support and the right high-security solution while building lasting relationships with our customers.

Product Documents
