Super Bolt

The Super Bolt is CTPAT compliant and meets the standard for a High Security Seal as outlined in the ISO 17712:2013 specifications.

SKU: BRBAHD Category:
CLICK HERE TO DOWNLOAD RELATED DOCUMENTS

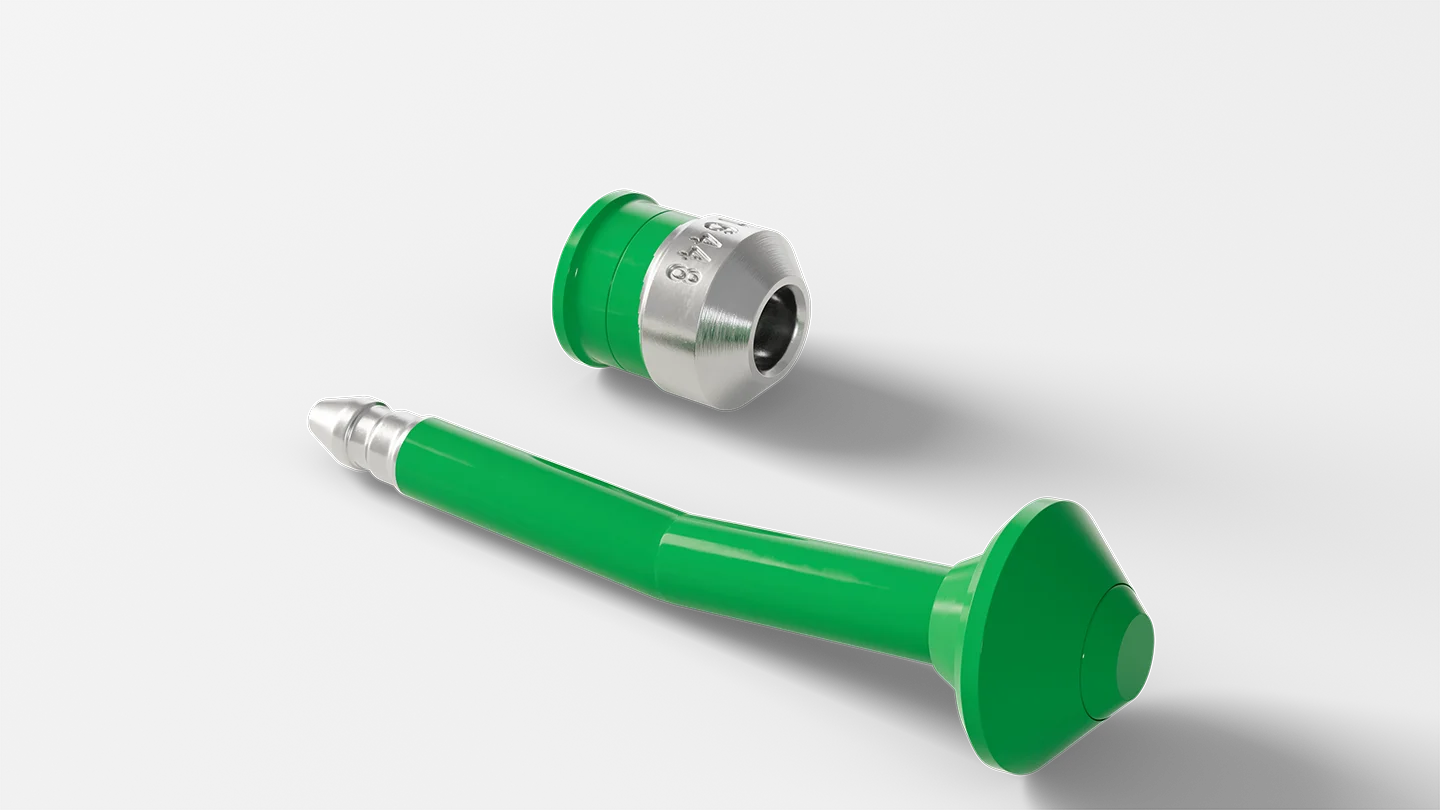

Super Bolt

The Super Bolt is a heavy duty case hardened bolt seal for applications requiring restricted access to the doors of trucks, containers, and railcars. Special/restricted removal tool is required for bolt removal. The Super Bolt is CTPAT compliant and meets the standard for a High Security Seal as outlined in the ISO 17712:2013 specifications.

Key Benefits

  • Removal Tool Requirement

    Removal tool required for bolt removal

  • Tensile Strength: 6475 lbs (28.8kN)

    High strength, tamper-resistant hardened steel bolt offers extreme durability in all conditions

  • Customizable Markings

    Consecutively numbered and/or barcoded

  • Locking Body Options

    Overmolded colored plastic or zinc plated

  • Corrosion Resistance

    Zinc Plating

Industries

  • Trucking

  • 3rd Party Logistics

  • Retail

  • Transportation

  • Oceanic

  • Rail

ApplicationsApplications

• Autorack Rail Cars
• Containers
• Truck/Trailer Door

Marking/PrintingMarking/Printing

Zinc Plated Locking Body:

• Roll Marked
• 6 Digits consecutively marked, 3 characters

Overmolded Locking Body:
• Laser barcoding available:

  • 128
  • 39
  • Max 7 Digits

Standard ColorsStandard Colors

Locking Body Color Options:

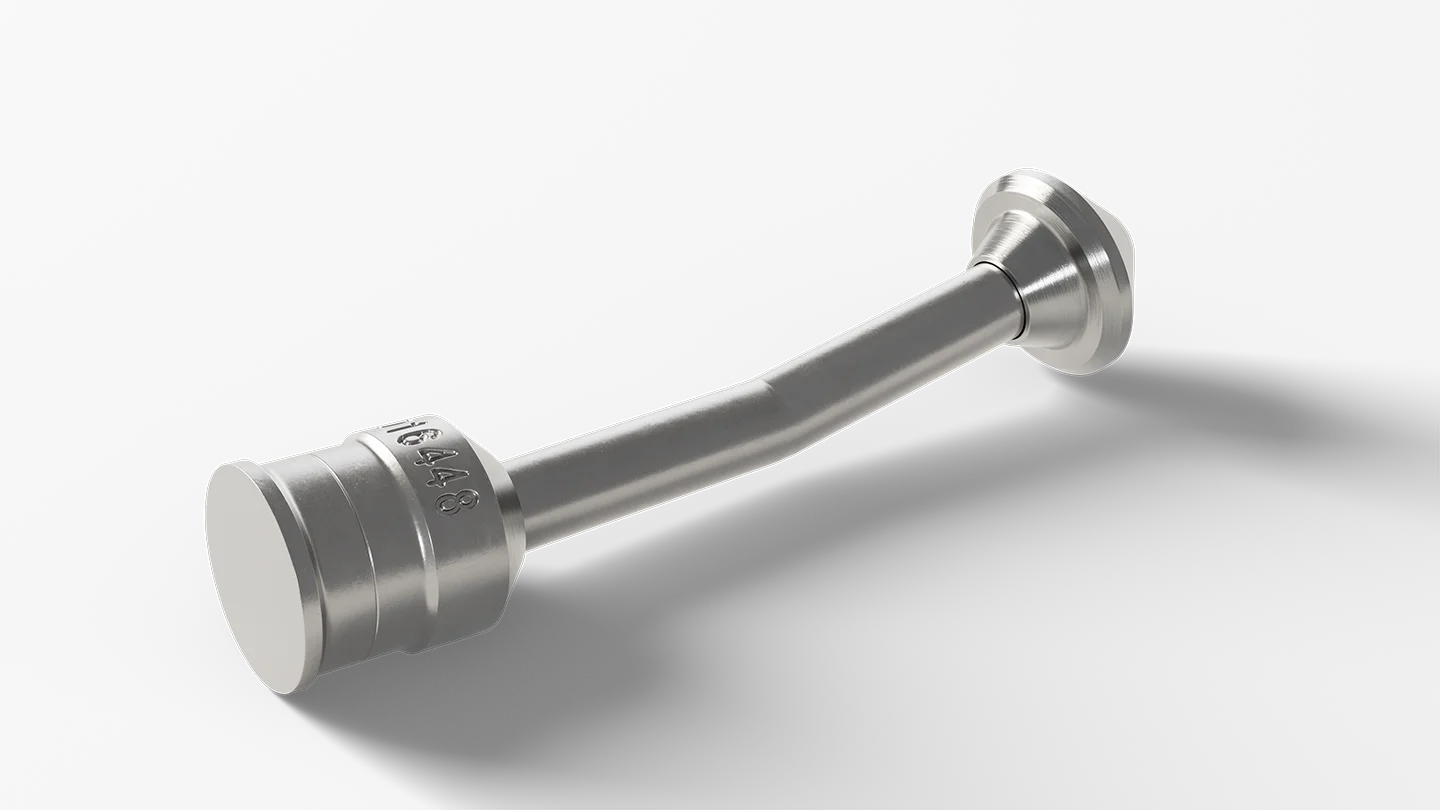

  • Steel w/ Zinc Plated Finish:
    • Silver

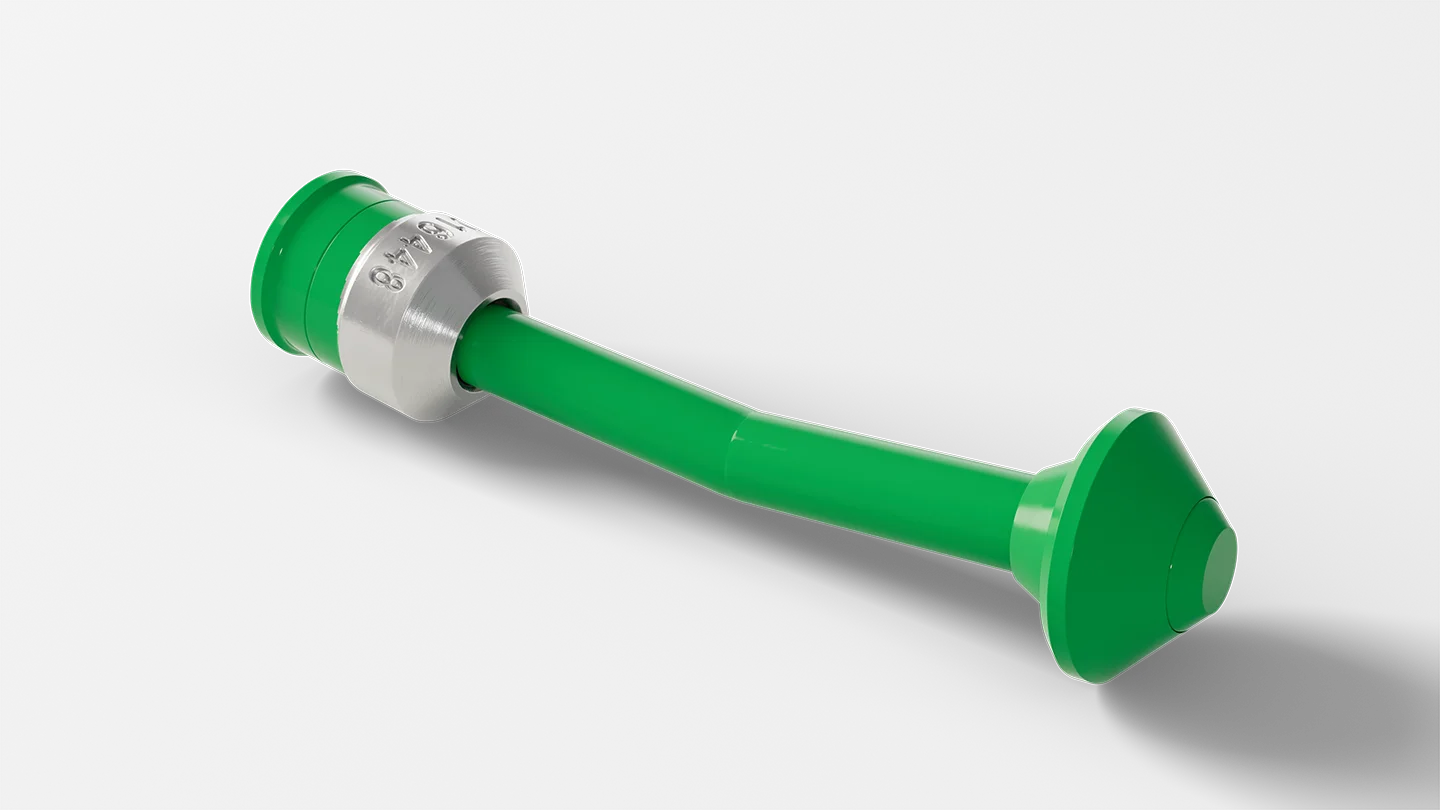

    • Green

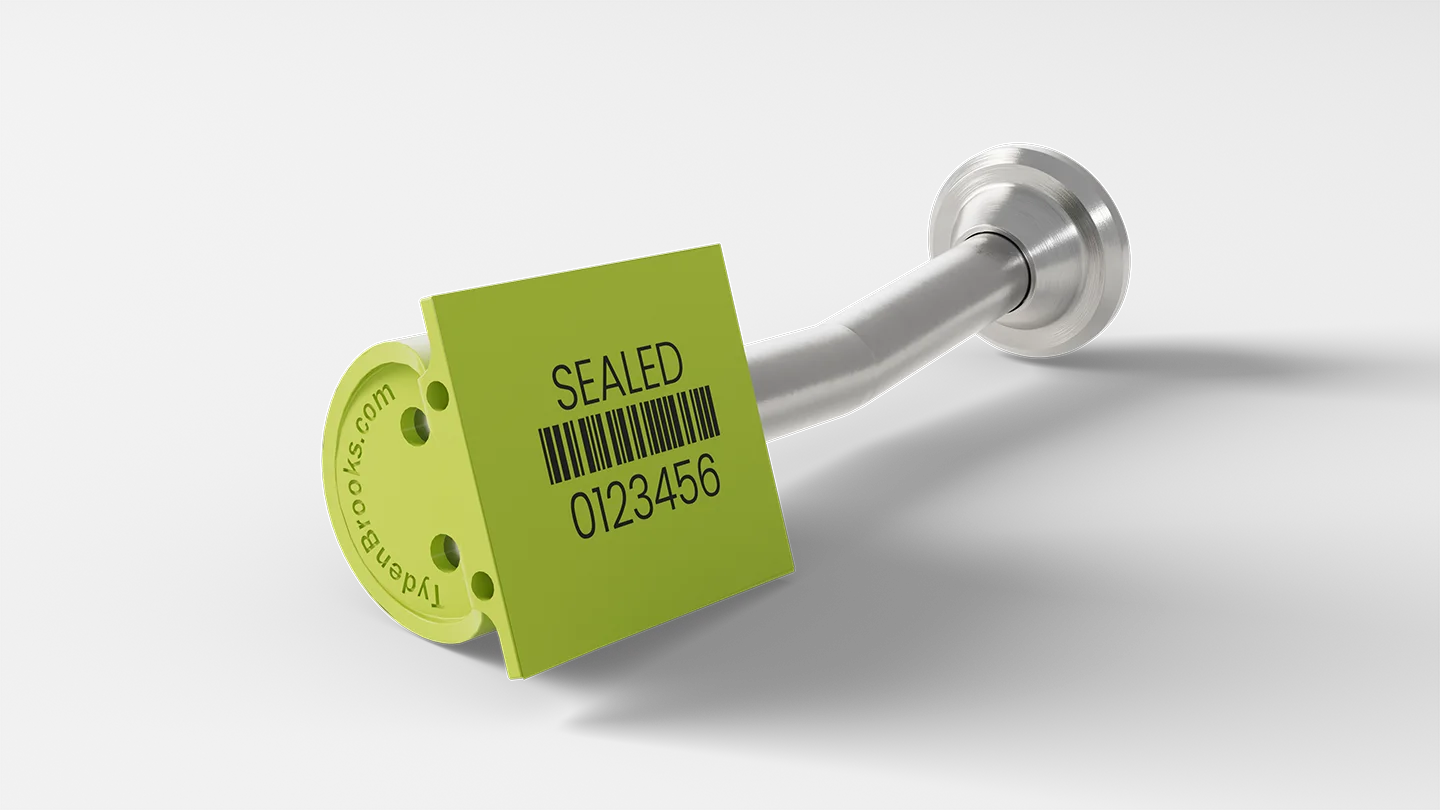

  • Plastic Overmolded:

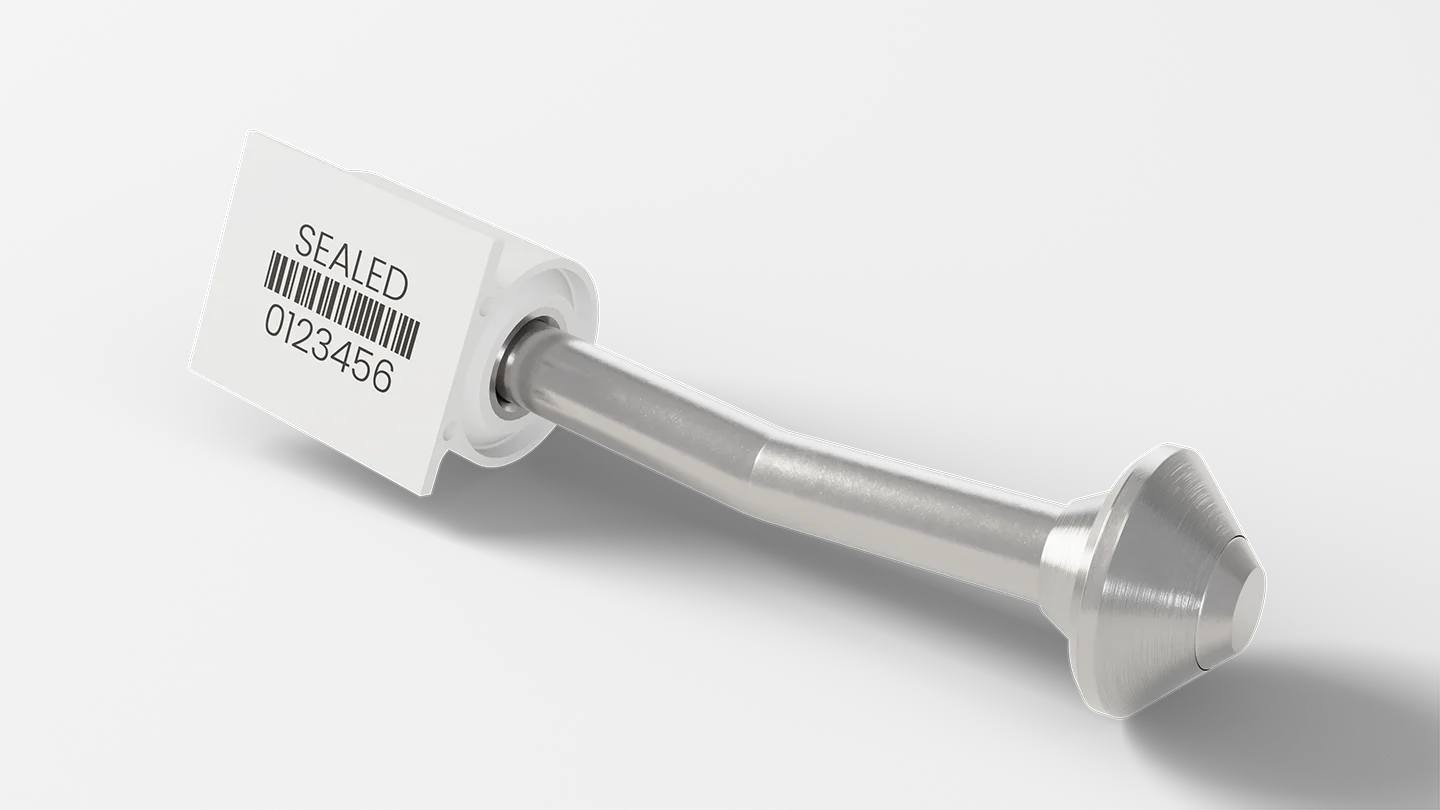

    • White

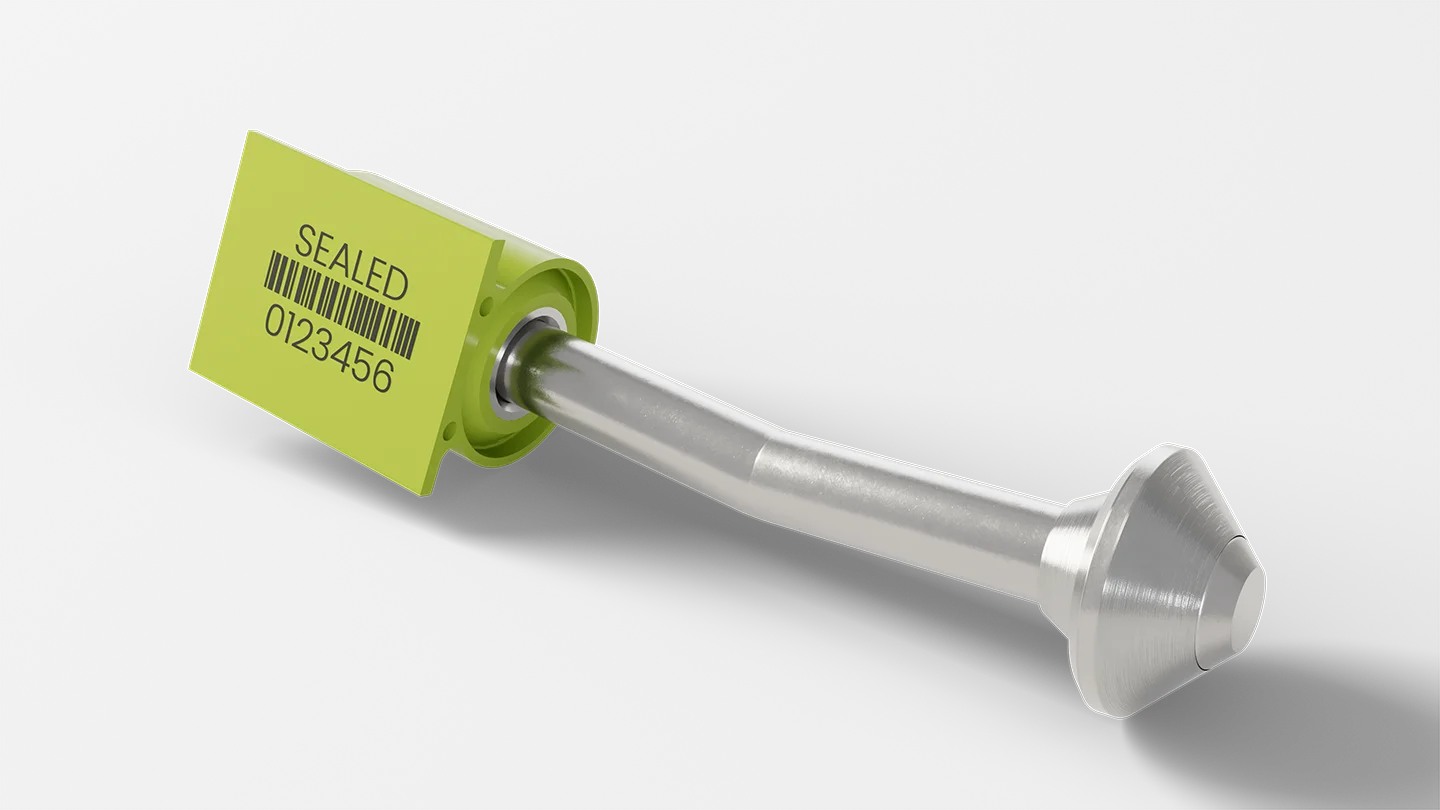

    • Yellow
    • Lime Green
    • Contact us to discuss MOQ for Custom colors

FeaturesFeatures

• Anti-spin locking joint option

• Optional 4″ Fortified Bolt with rubber washer

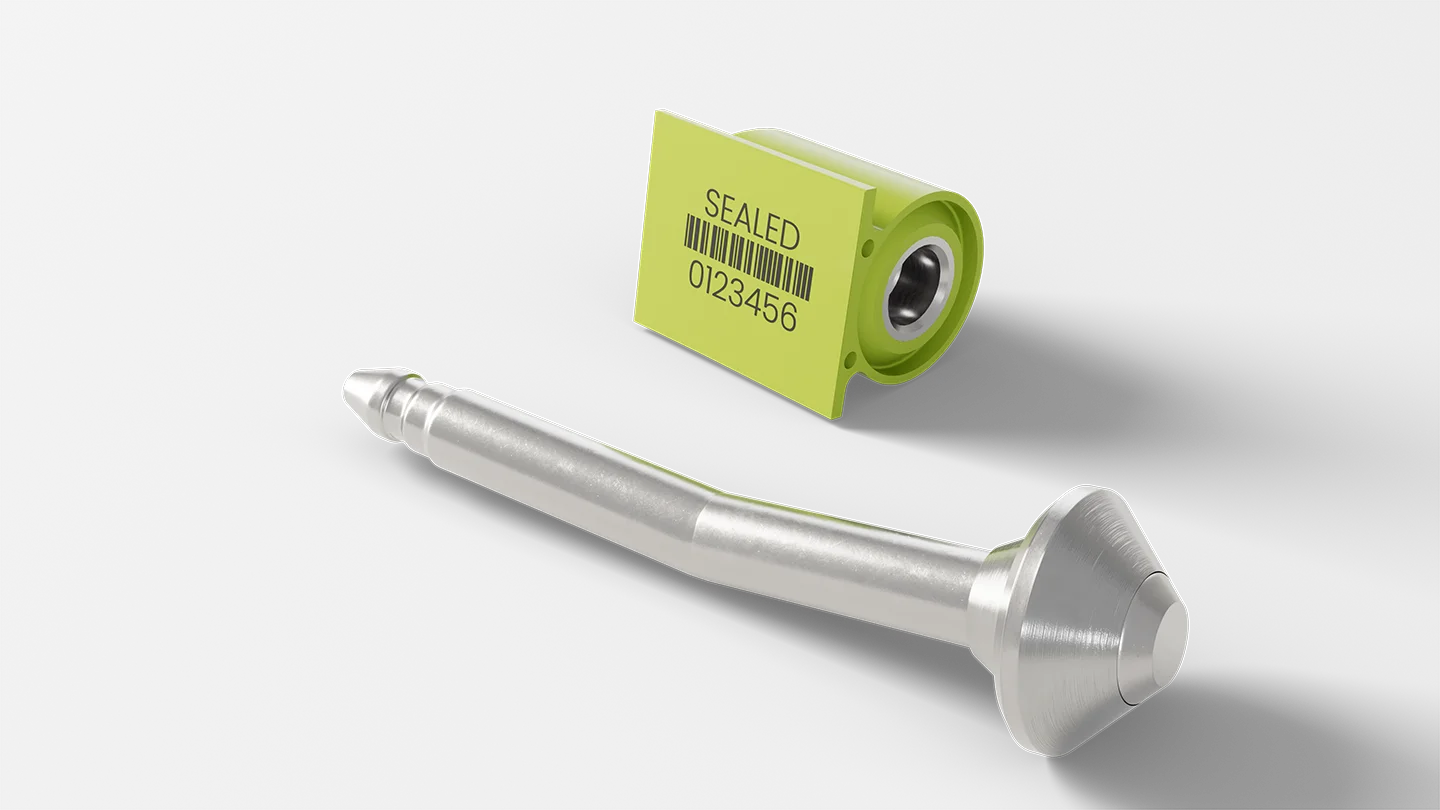

• Metal locking end encased in a consecutively numbered
and/or barcoded half shell and custom colored secondary
half-shell
• Features a color coded ABS marking body and clear ABS
protective marking cover

MaterialMaterial

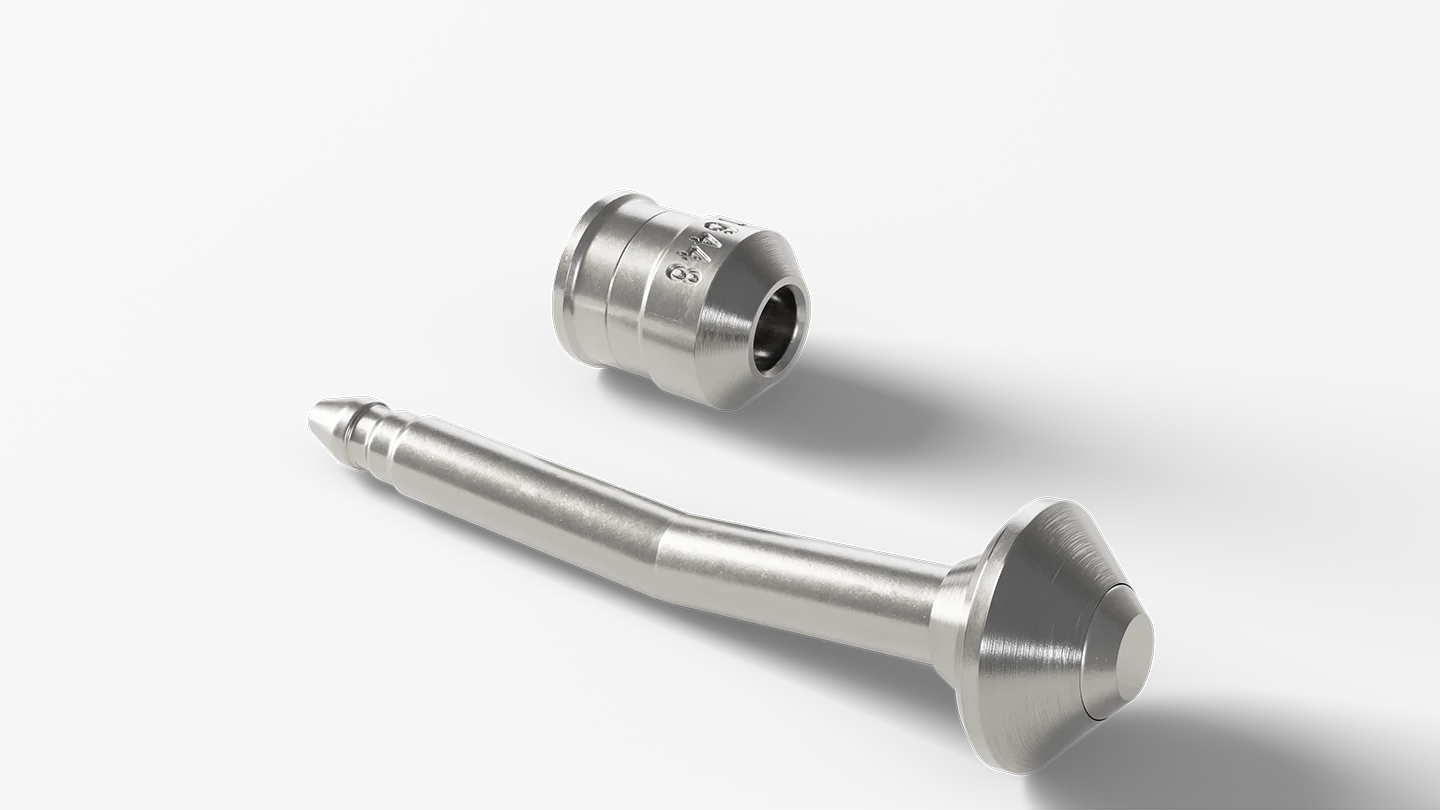

• Body: Steel, zinc plated finish
• Bolt: Hardened steel
• Tensile strength: 6475 lb (28.8kN)

DimensionsDimensions

• Length: 4” and 6” (102mm and 152mm)
• Bolt Diameter: 3/8” (9mm)

Strength CharacteristicsStrength Characteristics

  • Tensile strength: 6475 lb (28.8kN)
  • TydenBrooks “A-Head” removal tool required for removal

PackagingPackaging

• 100 seal per box
• Box dimensions:
• 11”x 9” x 5”” (279mm x 229mm x 127mm)
• Carton Weight
• 4”: 31 lbs. (14 kg) per box.
