Rod Lock II Bolt Seal

Designed for versatility, the ISO 17712:2013 CTPAT compliant Rod Lock II is ideal for securing containers, railcars, and truck doors, providing tamper-evident security for global supply chains.

SKU: 8904 Category:
CLICK HERE TO DOWNLOAD RELATED DOCUMENTS

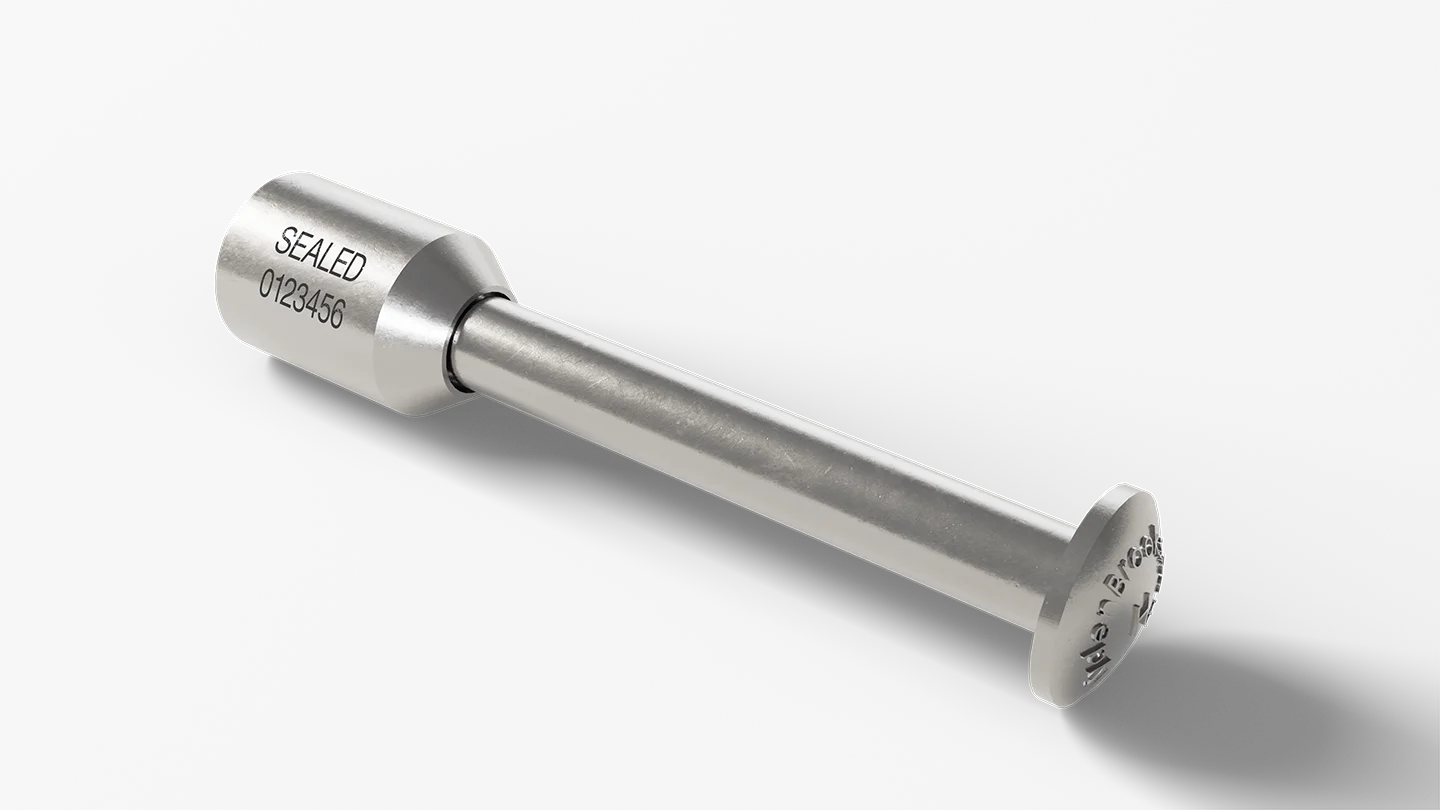

Rod Lock II Bolt Seal

The Rod Lock II is a high-security, single-use bolt seal engineered for maximum protection. Built with an all-steel bolt and locking end, it meets ISO 17712:2013 standards for High Security and is CTPAT compliant. Designed for versatility, the Rod Lock II is ideal for securing containers, railcars, and truck doors, providing tamper-evident security for global supply chains.

Key Benefits

  • Tensile Strength: 6,492 lb-F (28.88 kN)

    Steel bolt and locking case

  • Customizable Markings

    Laser marked lock body with company name (7 letters) and consecutive numbers (7 digits)

  • Locking Body Integrity Indicator

    Locking chamber spins freely to confirm seal integrity

Industries

  • Chemical

  • Food & Beverage

  • Retail

  • Transportation

  • 3rd Party Logistics

  • Trucking

ApplicationsApplications

• Intermodal Containers
• Hazmat Containers
• Railroad Box Cars
• Truck/Trailer Door

Marking/PrintingMarking/Printing

• Laser marked lock body with company name (7 letters) and consecutive numbers (7 digits)

Standard ColorsStandard Colors

• Bright Zinc Plating

FeaturesFeatures

• C-TPAT and ISO 17712:2013 compliant

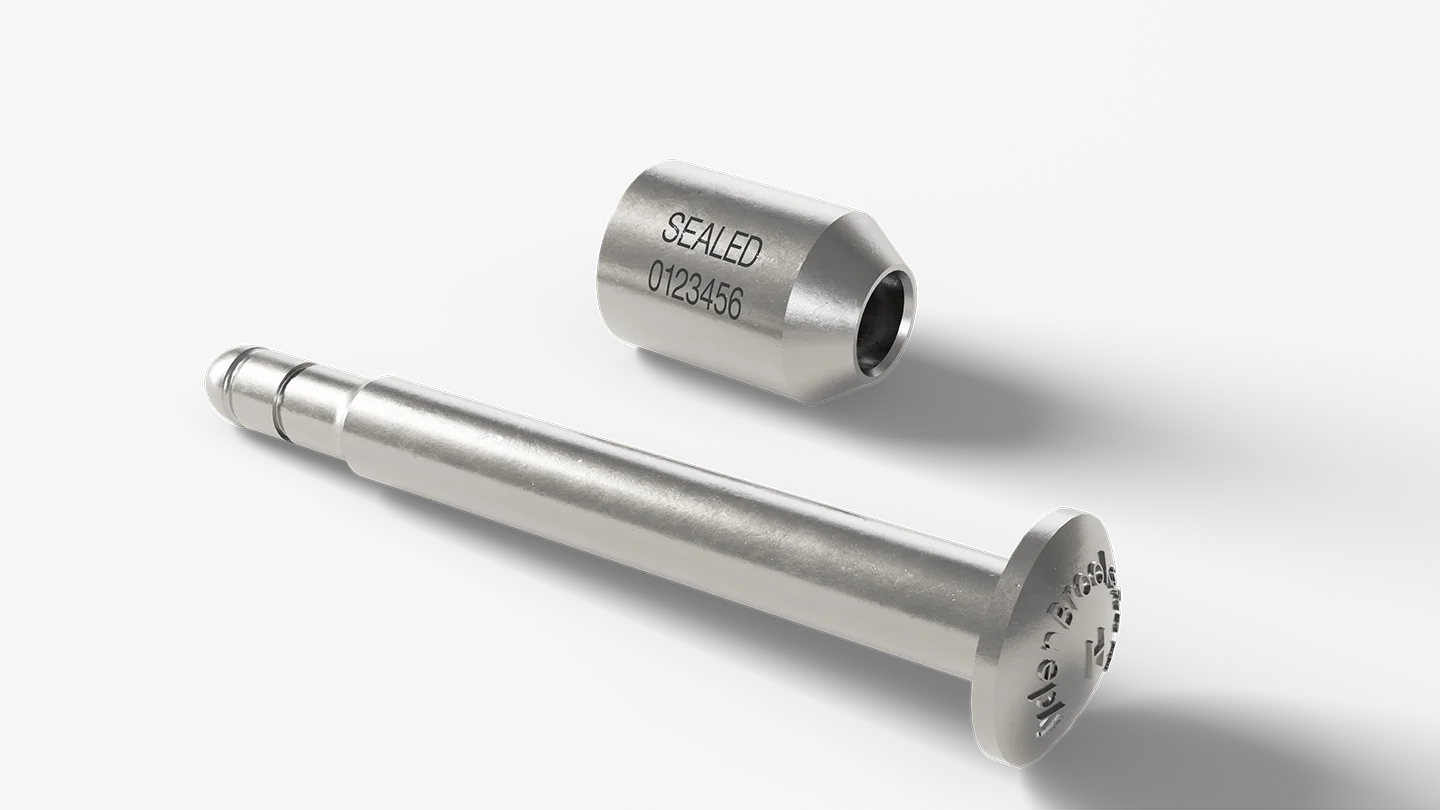

• Two-piece construction for economy and performance
• Steel bolt and locking case
• Locking chamber spins freely to confirm seal integrity
• Straight and bent (0.15) bolts available

MaterialMaterial

• Steel with zinc chromate finish

DimensionsDimensions

• Bolt Length: 3.5” (89 mm)
• Bolt Diameter: 3/8” (9.5 mm)
• Round Measurement: 1” – True Length: 1.06” (26.9 mm)
• Body Diameter: .75” (19.1 mm)

Strength CharacteristicsStrength Characteristics

• 6,492 lb-F (28.88 kN)
• Requires a TydenBrooks H.K. Porter center-cut bolt cutter for removal.

PackagingPackaging

• Standard Packing: 100
• Carton Weight: 22 lbs (10kg)
• Carton Size: 10″ x 10″ x 5″ (25cm x 25cm x 13cm)

Superior Quality

Original innovator and manufacturer of tamper-evident security seals—Producing the highest quality of seals for over 150 years with cutting-edge manufacturing and consistent performance. Designed for durability, dependable performance, and compliance with global security standards to ensure reliability at scale.

Dedicated Customer Service

Our dedicated and reliable customer service team is available to offer quick resolutions to ensure your security needs are always met and support every step of the way. Working alongside you to listen to your unique needs, ensuring that you receive the best support and the right high-security solution while building lasting relationships with our customers.

Industry-Standard Certifications

Our commitment to quality, compliance, and security is backed by industry-leading certifications meeting global supply chain security requirements. Engineered to meet ISO 17712:2013 high security seal standards that ensure our loyalty to the highest standards to safeguard your valuable assets.

Product Documents
