Intermodal II Bolt Seal

The Intermodal II container seals are designed for ISO containers and high value cargo shipments.

SKU: 9254 Category:
CLICK HERE TO DOWNLOAD RELATED DOCUMENTS

Intermodal II Bolt Seal

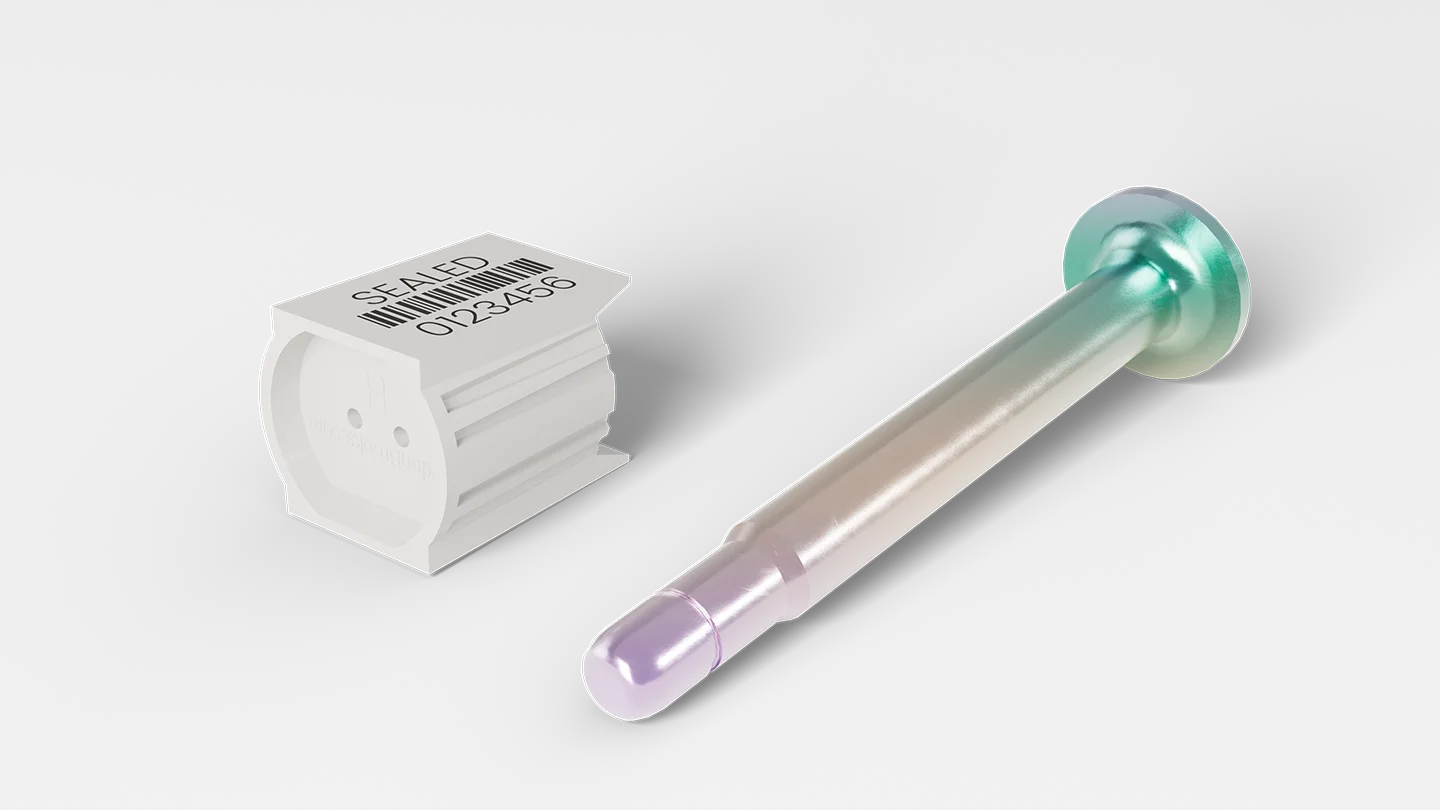

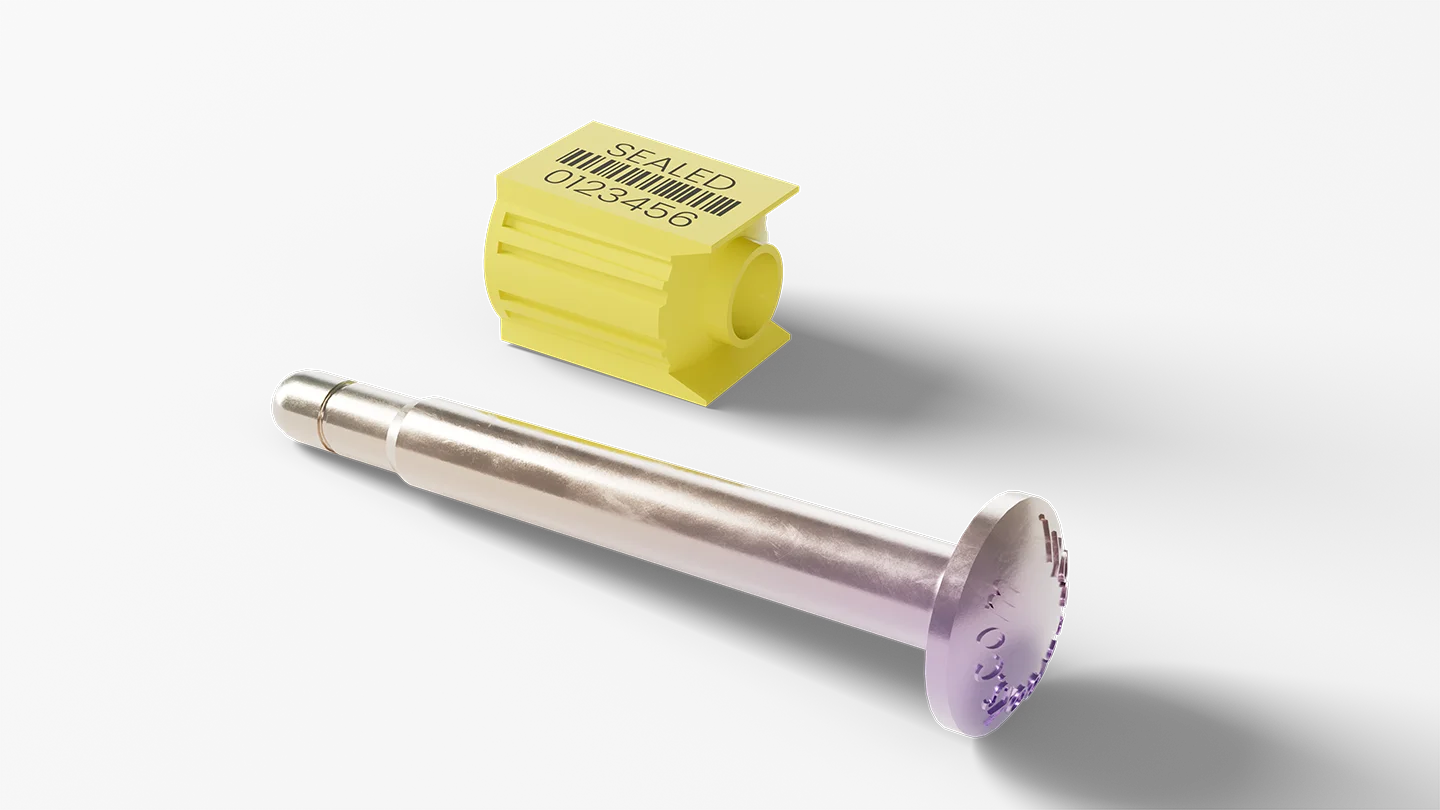

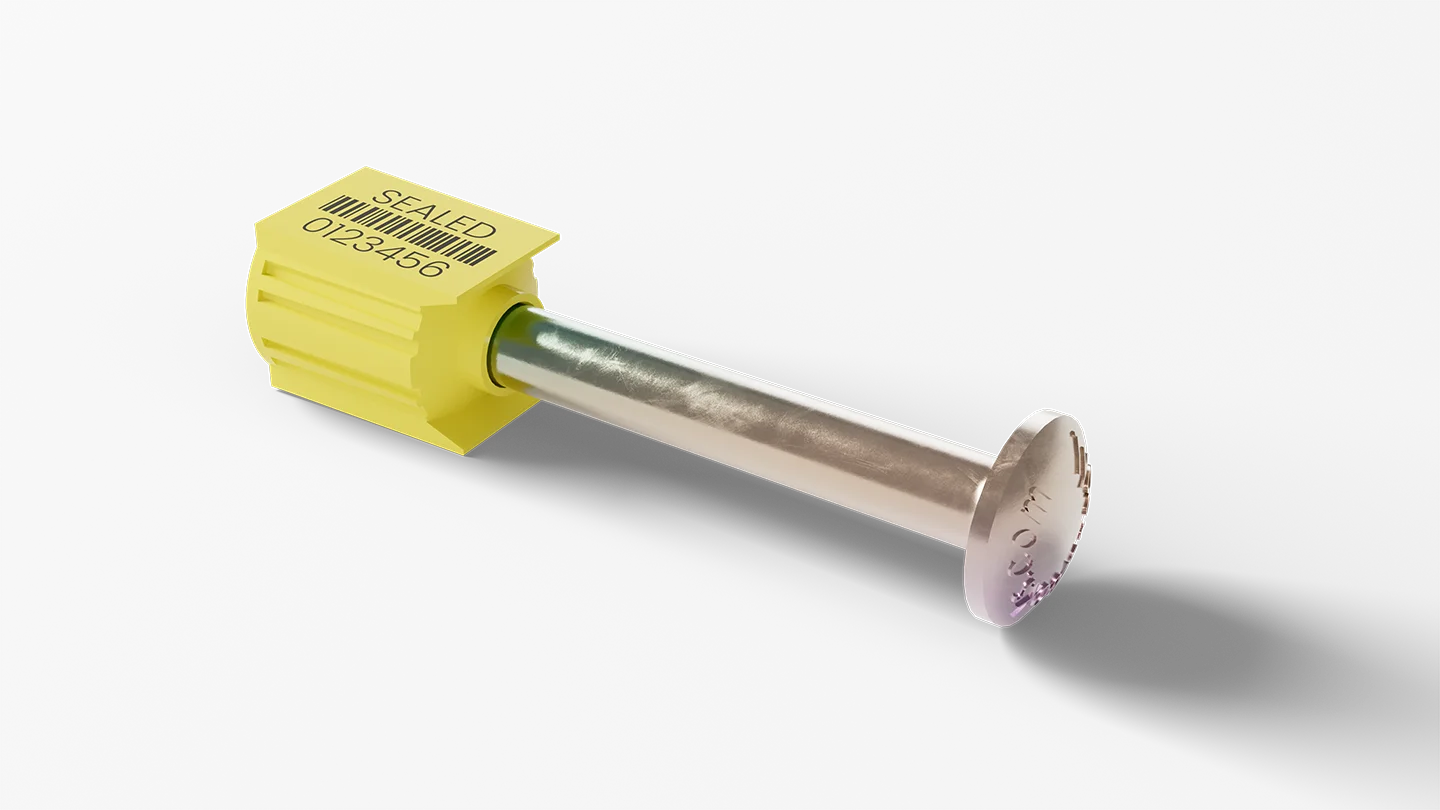

The Intermodal II is an ISO 17712: 2013, CTPAT Compliant high security bolt seal which consists of a steel bolt and a plastic-coated steel locking chamber. The Intermodal container seals are designed for ISO containers and high value trucking and rail cargo shipments.

Key Benefits

  • Tensile Strength: 4,713 lbs. (21.0 kN)

    High strength, tamper-resistant carbon steel with zinc chromate finish

  • Customizable Markings

    Heat stamping (6 digit) or laser barcode marking available

  • Locking Body Options

    High impact plastic cover on locking chambers clearly indicate tampering

  • Seal Integrity Indicator

    Locking insert spins freely to confirm seal integrity

Industries

  • Retail

  • Trucking

  • Rail

  • 3rd Party Logistics

  • Food & Beverage

  • Chemical

ApplicationsApplications

• Truck & Trailer Doors
• Box Car Doors
• Intermodal Containers

Marking/PrintingMarking/Printing

• Minimum quantities apply to customized versions of this product
– please call for details
• Stock seals have white locking cases and are lasered with
“SEALED”
• Characters are 1/4” (6.35mm) high
• Heat stamping (6 digit) or laser barcode marking also available

Standard ColorsStandard Colors

• White/Yellow

• Contact us to discuss MOQ for Custom colors

FeaturesFeatures

• ISO 17712: 2013 and CTPAT Compliant
• Metal locking end encased in consecutively numbered
body
• ‘H’ on bottom of body base indicating ‘High Security’

MaterialMaterial

• Made of carbon steel with zinc chromate finish
• ABS plastic body on locking case

DimensionsDimensions

• Bolt: 3.5” (89mm) long and 3/8” (9.5 mm) in diameter.
• Bolt head and lock body conform to ISO 17712: 2013 specifications

Strength CharacteristicsStrength Characteristics

• 4,713 lbs. (21.0 kN)
• Requires a TydenBrooks H.K. Porter center-cut bolt cutter for removal.

PackagingPackaging

• Stock Packing: 100 per box
• Stock Weight: 16 lbs. (7.26 kg)
• Stock Carton size: 11.5″x11.5″x5″ (29cmx29cmx13cm)
• Standard Packing: 200 per box
• Weight: 31 lbs. (14 kg)
• Carton size: 18″x11″x5″ (46cmx28cmx13cm)
